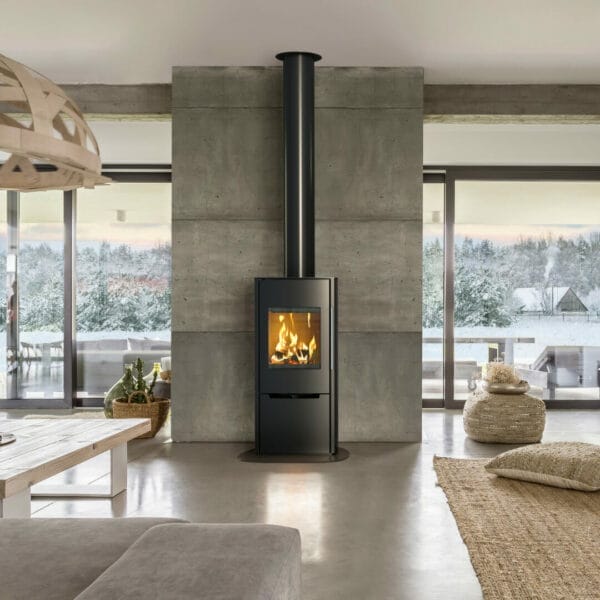

Schiedel Wood Burning Stove SG1 – Internal Bungalow – Chimney and Stove Package

by Schiedel
£3,831.52
SKU SCH-WBS-SG1-BUN-CHIM-01

Schiedel SG wood-burning stove is a new model designed for optimal efficiency and performance. It comes with our award-winning ICID twin wall flue system, available only as a complete stove and chimney package. This system includes all necessary components to route the chimney through the roof or externally, depending on the selected kit.

Key Features

  • Up to 81% Efficiency: Delivers more heat with less wood, reducing energy consumption.
  • Self-Closing Door: Ensures safety and ease of use.
  • One-Lever Operation: Controls both primary and secondary combustion air.
  • Wood Room with Ash Drawer: Practical front door for easy ash removal.
  • Adjustable Legs: Stabilizes on uneven floors.
  • Energy Class A+: Efficient and environmentally friendly.
  • Complete Package: Includes twin wall chimney system and direct air kit.

Innovative Construction

The SG stove features the Schiedel Permeter flue system, which directs combustion air to the top of the stove, making it suitable for both new and existing homes. It offers high efficiency, minimal emissions, and is built to last for many years.



Technical Specifications

Feature Sargas 1 Sargas 3
Rated Output 6.2 kW 6.2 kW
Efficiency 81% 81%
CO2 Emissions 1125 mg/m³ 1125 mg/m³
Dust Emissions 6 mg/m³ 6 mg/m³
Flue Gas Temperature 327 °C 327 °C
Negative Pressure in Chimney 12 Pa 12 Pa
Weight approx. 100 kg approx. 100 kg
Dimensions (W x D x H) 526 mm x 417 mm x 1133.7 mm 526 mm x 417 mm x 1133.7 mm
Fuel Consumption 2 kg/h 2 kg/h
Distance from Glass Front 1200 mm 1200 mm
Distance from Superimposed Hearth 225 mm 225 mm



Safety and Installation

  • Distance to Combustibles:
    • Sargas 1: Rear 70 mm, Sides 100 mm, Floor 0 mm, Distance from Glass Front 1200 mm
    • Sargas 3: Rear 50 mm, Sides 400 mm, Floor 0 mm, Distance from Glass Front 1200 mm

Model 1/3 stove downloads

Schiedel stove brochure

Schiedel stove installation instructions
