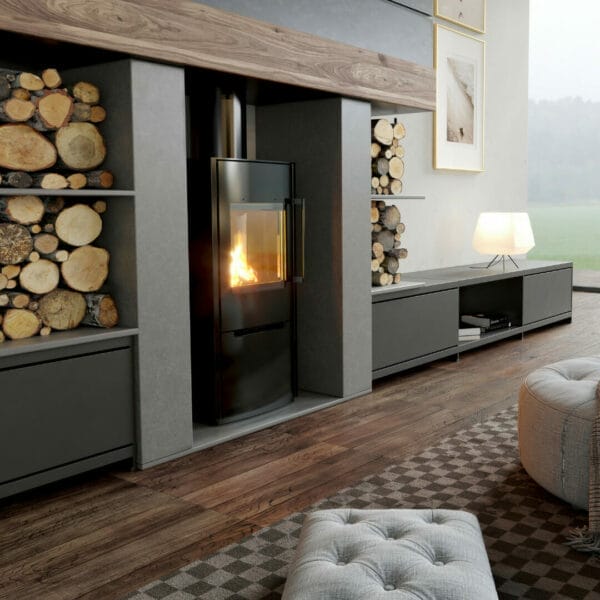

Wood Burning Stove SG1 – Internal House – Chimney and Stove Package
by Schiedel
£4,552.04
SKU 176964
Schiedel SG wood-burning stove is a cutting-edge model that comes with our award-winning ICID twin wall flue system. It is available exclusively as a complete stove and chimney package, which includes everything needed to route the chimney either through the roof or externally, depending on the kit chosen.
Key Features
- Up to 81% Efficiency: Maximizes heat output with less wood.
- Self-Closing Door: For enhanced safety and convenience.
- Easy Operation: One lever controls both primary and secondary combustion air.
- Practical Design: Features a wood room with a front ash drawer door.
- Adjustable Legs: Ensures stability on uneven floors.
- Energy Class A+: Efficient and eco-friendly performance.
- Comprehensive Package: Includes twin wall chimney system and direct air kit.
Innovative Design
The SG stove utilizes the Schiedel Permeter flue system, supplying combustion air directly to the top of the stove. This makes it ideal for both new and existing homes with lower heating needs. With its high efficiency and minimal emissions, the SG stove offers long-lasting performance and sustainability.
Safety and Installation
-
Distance to Combustibles:
- Rear: 70 mm
- Sides: 100 mm
- Floor: 0 mm
- Distance from Glass Front: 1200 mm
- Distance from Superimposed Hearth: 225 mm
Specifications
- Efficiency: Up to 81%
- Energy Class: A+
- Chimney System: Twin wall with direct air kit
- Combustion Air: Direct air supply via Schiedel Permeter flue system
Stove Technical Details / Approvals
| Feature | Sargas 1 | Sargas 3 |
|---|---|---|
| Rated Output | 6.2 kW | 6.2 kW |
| Efficiency | 81% | 81% |
| CO2 Emissions | 1125 mg/m³ | 1125 mg/m³ |
| Dust Emissions | 6 mg/m³ | 6 mg/m³ |
| Flue Gas Temperature | 327 °C | 327 °C |
| Negative Pressure in Chimney | 12 Pa | 12 Pa |
| Weight | approx. 100 kg | approx. 100 kg |
| Stove Dimensions (W x D x H) | 526 mm x 417 mm x 1133.7 mm | 526 mm x 417 mm x 1133.7 mm |
| Fuel Consumption | 2 kg/h | 2 kg/h |
| Distance from Glass Front | 1200 mm | 1200 mm |
| Distance from Superimposed Hearth | 225 mm | 225 mm |
| Minimum Distance from Combustible Materials | Front 1200 mm / Sides 100 mm / Back 70 mm (Model 1) | Front 1200 mm / Sides 400 mm / Back 50 mm (Model 3) |
Model 1/3 stove downloads
Schiedel stove installation instruction
